Design pattern
Abstract
MartiLQ defines a software pattern (document) for describing data files or documents generated from a source and intended to be consumed by another system component with self-describing information with load assurance metrics.
The consuming system component can be at the same location, a different geographical location, the same organization or another organization.
The pattern does not define the format that the data file or document must take or how the data is transferred or accessed. You choose the data format and transfer method. Once you have made the choice, you can describe it in the martiLQ document.
Describing the format and transfer can be tooled so that the mundane activity is automated and only the specific nuance or additional assurance aspects need your attention. Sample scripts are provided to demonstrate generating the martiLQ document.
Name
martiLQ documentation standard
Problem statement
Even though event streaming is a strategic goal for many organizations, there exists legacy processes and there will continue to be a need to transfer data flies and other documents from one system to another.
When a handover of a data file or document occurs, the best practice is to include metrics with the transfer to assure the recipient of provenance and quality of the data file or document. This is the metadata associated with the data file or document.
A document includes unstructured data, letters, pictures, binary objects while data files could be though of as structured data that is describes multiple records.
Assurance Problem
How does the recipient know they have received all related files, the provenance, it is immutable and assurance on quality?
Many organizations have used the file name as the carrier of this information but this has limits.
Efficiency Problem
How can the assurance be described so that it can be tooled and not rely on manual documentation and custom tooling?
With the drive to DevSecOps or DataOps, any pattern that can be self describing or at least majority self describing will improve documentation and quality of the process. This boosts the efficiency of building, testing and maintaining the transfer of data files and documents.
Therefore the objective is to produce a documentation standard that:
- provides load assurance when transferring data files and documents
- can be tooled and therefore achieve some level of automation
- is extensible to give the publisher and consumer control as to the level of assurance required to match the risk appetite of the organization
Context
This pattern is intended to be applied when assurance is required on transferred data files and documents. The data files or documents are commonly packaged together and the pattern is not intended for real time event processing nor single record processing. The pattern can be used on single data file or document if each is considered independent and standalone.
Packaging the related data files and documents is part of data integrity especially if referential integrity for foreign keys is required or the documents relate all to the same case such as in workflow.
The assurance includes the following scope and this can be extended to meet changing conditions or changes in threats or risk.
Assurance scope
The individual items below are not mandatory but are provided as part of the standard definition as they are considered the minimal for best practice
- Provenance
- Immutable
- Data period or timeline
- Sequence or batch
- Status and expiry date
- Link to data file or document
- Format, encoding, compression
- Data record count
There is an acknowledgment process that is recommended for confirmation on processing. See acknowledgement for approach details.
Forces
The qualities that this pattern is addressing are:
- Frees transfer from file naming convention that include magic strings that store metadata
- A event message based paradigm which is independent of the size and number of files
- Publishes basic metadata on the files and their source
- Secures the file transfer from tampering or corruption
- Allows the inclusion of quality metrics such as provenance, elements and record counts
- Allows the consumer to select the files to process avoiding unnecessary transfers
- Provides a simple acknowledgment process
- Is extendable
The file transfer pattern is the original method for separate processes to exchange data. The file being stored on magnetic tape and either loaded back onto the same compute resource (think mainframe) or physically couriered to another location or tape drive. The reference book Enterprise Integration Patterns by Hohpe and Woolf recognizes this by inclusion of the pattern written by Martin Fowler.

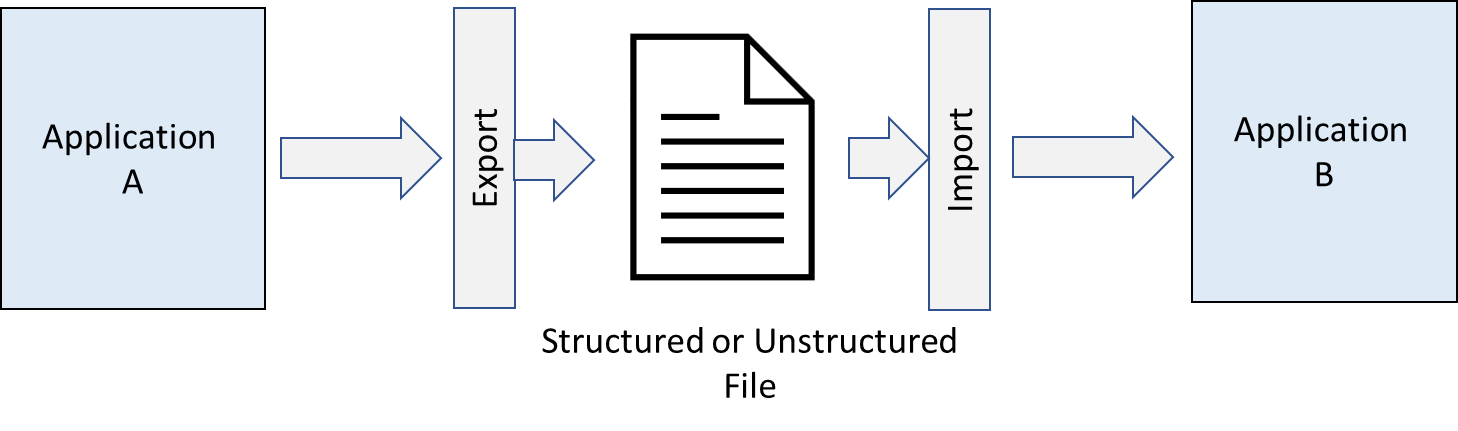

The basic file transfer pattern
In the explanation written by Martin Fowler, he makes observations about the "File Transfer" including:
"Part of what makes File Transfer simple is that no extra tools or integration packages are needed, but that also means that developers have to do a lot of the work themselves. The applications must agree om file-naming conventions and the directories they appear. ... , then some application must take responsibility for transferring the file form one disk to another"
The pattern being described here addresses the issues and concerns that relate to file transfer. Many of these are related to the common non functional requirements that architects cover in solution designs.
Solution
The martiLQ document pattern can be implemented in various combinations. Some combinations are illustrated below.

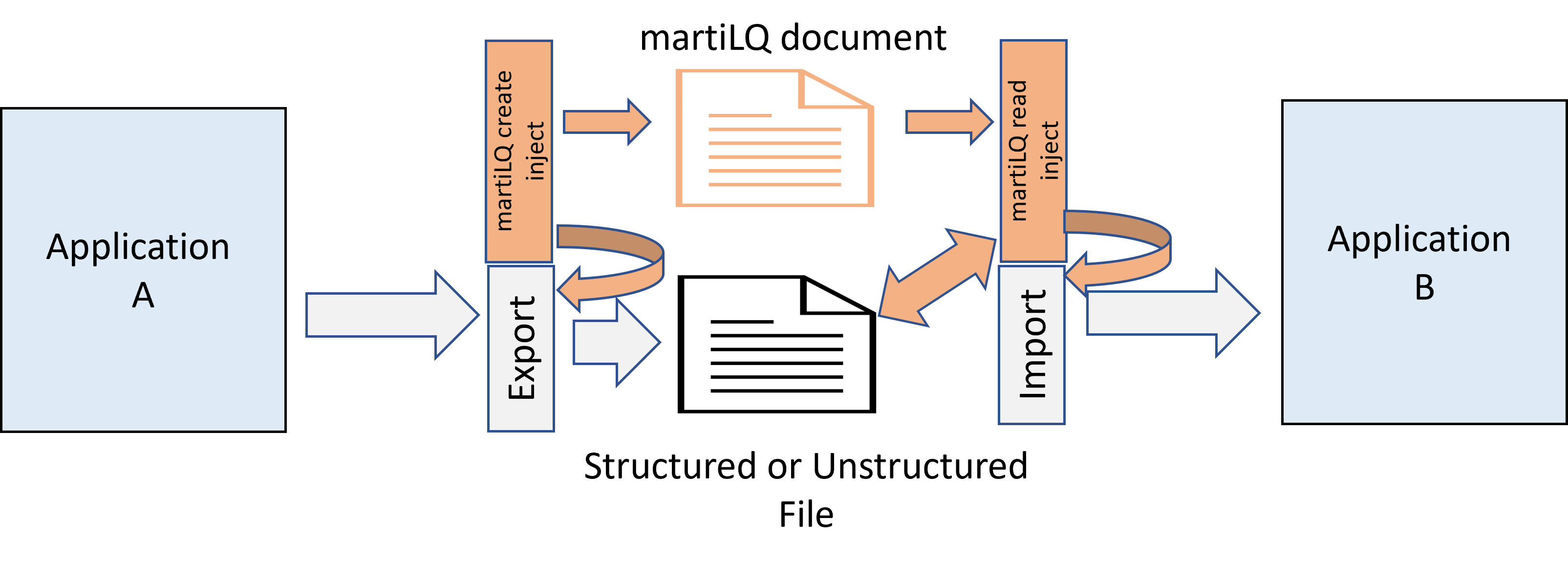

Using the pattern without large scale change to existing processing

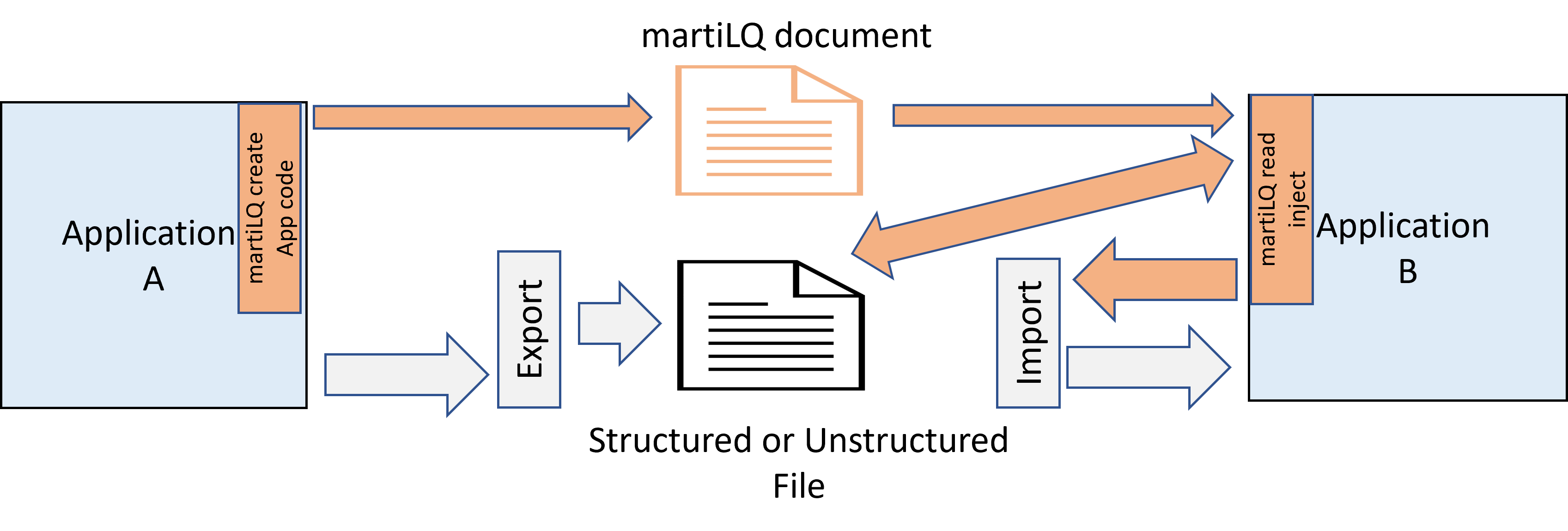

Inclusion of the pattern into existing application code to generate and read the martiLQ document

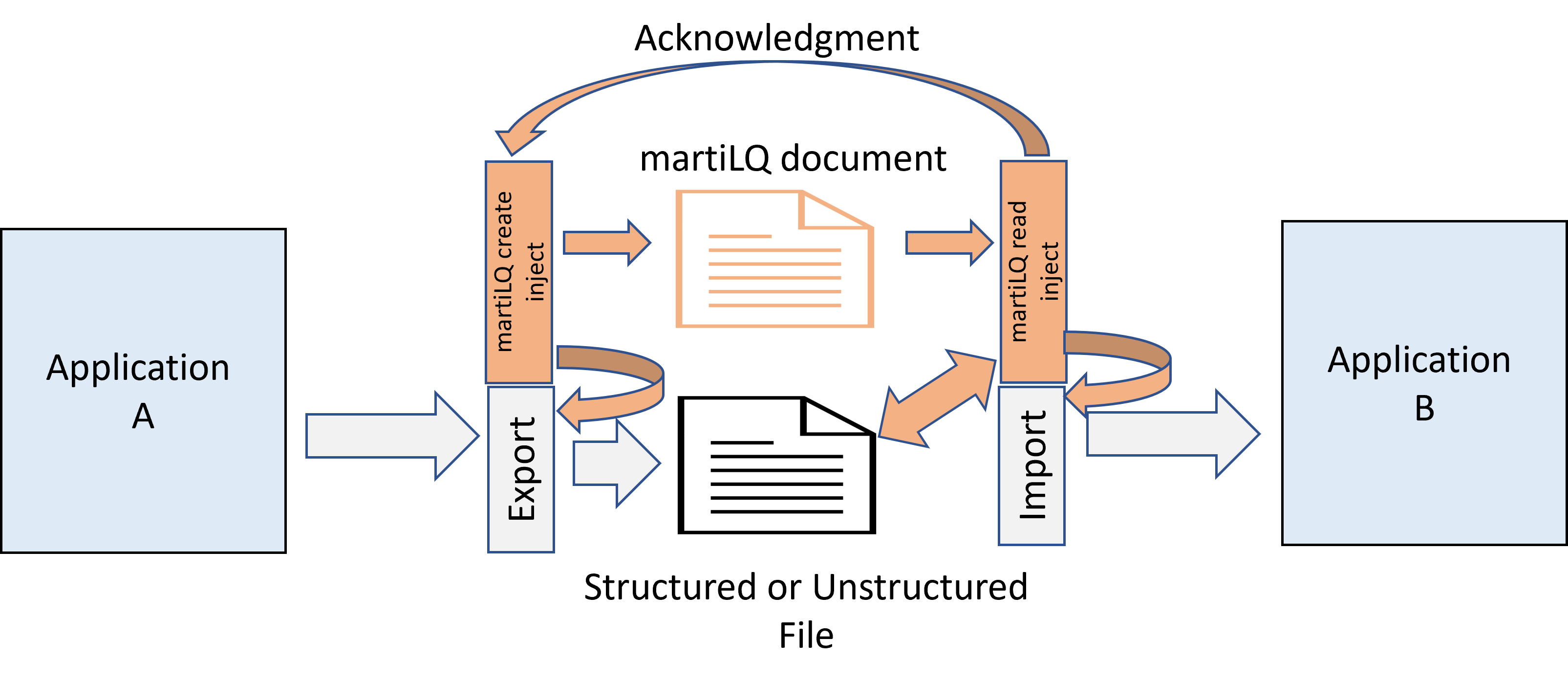

If there is a requirement for acknowledgement to the publisher, then maybe this approach is applicable
Security, robustness, reliability, fault-tolerance
The pattern defines how security and assurance is applied to the data files and documents. The pattern does not define how to setup a reliable infrastructure, but it can be used to detect failures in the infrastructure. The fault-tolerance allowance is up to each implementation.
Fault-tolerance and the actionable task can be dialled from 0% tolerance to 100% tolerance on a case by case basis.
Manageability
The pattern takes into consideration of how the file transfer is managed. It can provide a standard that makes file transfers easier to manage regardless of the underlying transport mechanism. As the same martiLQ document can be consumed by multiple recipients, it is easy to distribute, with access controls ensuring only authorized recipients can access the files that are relevant to them.
This reduces the need to run multiple jobs distributing the files.
Management is also improved if the acknowledgement capability is implemented so that the publisher knows which recipient has processed the file. If the recipient no longer wishes the file and stops processing the publisher will slowly build a time line and metrics to recognize that the file is no longer consumed. The publisher can then cease to produce unused files.
Efficiency, performance, throughput, bandwidth requirements, space utilization
If the process is using event based messaging, files that are not required at the destination are never transferred. This saves bandwidth and storage at the destination.
Scalability (incremental growth on-demand)
The pattern scalability is not bound to the size of the data files themselves. The pattern can be scaled to include thousands of data files or documents, though the practically of processing may be factor in the decision of breaking down to smaller volumes.
Extensibility, evolvability, maintainability
The martiLQ document can be customized and can evolve as the market conditions change. Versioning is built into the definition and consumers can select which attributes are mandatory for processing.
Modularity, independence, re-usability, openness, composability (plug-and-play), portability
The martiLQ document is an open definition that can be used in may file transfer scenarios. You can compose new functionality on top of the open code.
The martiLQ document is portable as is the reference implementation. You can run the Python, PowerShell, Go code on both Windows and Linux platforms and on different architectures.
Completeness and correctness
The martiLQ document contains metadata to ensure that all files in a job file transfer are treated as a package or integral unit. If files are missing then this is recognized early in the process and the recipient consumer can decide on whether to continue processing or halt.
Additional scope also exists in the martiLQ document to add more load quality assurance metrics, which can be automatically processed to ensure correctness.
Ease-of-construction
The martiLQ document is a JSON formatted document, making it easy to construct using modern tools.
Note: An XML format document is in the backlog for possible implementation.
Using the reference implementation, the organization can implement the pattern into their current process without requiring extensive builds. The reference implementation has code in various programming languages and can run on Windows and Linux platforms.
All code is visible and auditable.
Note: The reference implementation is not the most efficient code in all situations and there is much room for improvement. The objective of the reference implementation was to demonstrate the ease of use by scanning file system directory or converting from another format such as CKAN.
Ease-of-use
If you are comfortable with using the reference implementation, you can be generating martiLQ documents in short time.
Download the git repository code, review the samples and adjust to scan your directory to generate the martiLQ document. As a simplistic approach you can execute the code in your pipeline after you have created existing files.
Resulting Context
After applying the pattern consistently on file transfers within the organization, the expectation is that you will spend less time discussing and building the mechanics of file transfer including the polling, monitoring and load assurance. A large portion which will have been for you as part of the martiLQ document and its implementation.
There will also less documentation to review and discuss as the martiLQ document will provide standards that developers can follow such as the encoding and format. This applies to both structured and unstructured data.
You will still need to decide fo structured data on how many files, the data columns and records to be included in each file.
For unstructured data, such as bundling like documents together, the process is much simpler if you take the approach to create a folder containing the files and then execute the routine to compress and package all together.
Examples
Please refer to the documentation and samples
